Diaphragm Pumps

BACK

Industrial Supplies Center is the technical distributor, stockiest and supplier of Diaphragm Pumps, transfer pumps in Oman, (AODD SAMOA Pumps). We also deal with supply of WILDEN Pumps for variuos industrial application. ISC is the supplier of Aluminium Diaphragm Pumps, Stainless Diaphragm pumps and Chemical pumps in Oman. SAMOA AODD Pump has globally patented ‘Frictionless Pivoting Valve’ technology & 3S technology, providing incredible air efficiency and maximised flowrates while ensuring low pressure reliable start-up, non-stalling ice-free, leak-free operation in a simple, easy-to-maintain pump. The universal design ensures easy replacing of competitor pump brands without much changes in mounting or pipe connections. The pumps have robust design and rugged, solid construction suited to handle the toughest applications and environments.

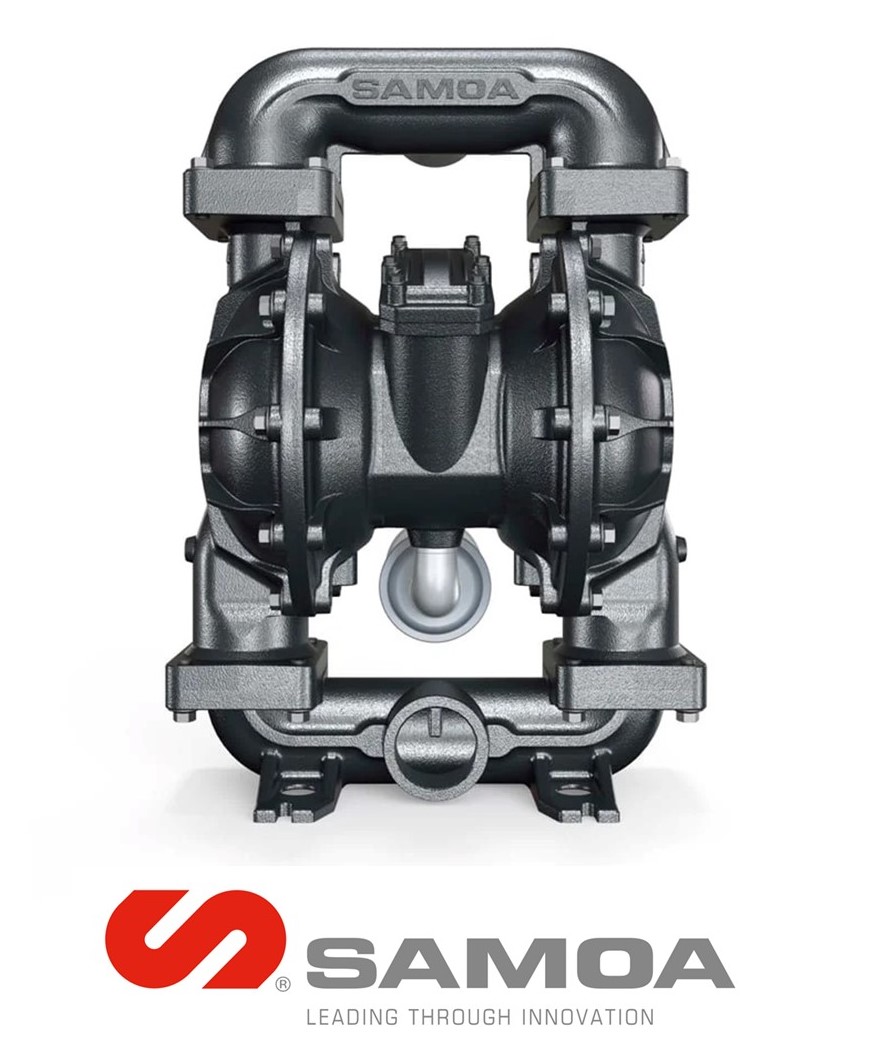

3" Metallic Diaphragm Pumps

Industrial Supplies Center is the technical distributor, stockiest and supplier of Air operated Double Diaphragm pumps, Transfer Pumps in Oman . SPECIFICATION Pump size: 3" Fluid ports connection: 3" X 3" BSP / NPT / ANSI&DIN Flanged Air inlet size: 3/4" NPSM (F) Conformity: CE, UKCA, EAC, ATEX Max. flow rate: 1000 litres/min Fluid displacement per cycle: 10.2 litres Pressure ratio: 1:1 Operating pressure range: 1.5 - 8 bar (22 - 120 psi) Max. size of suspended solids: 12 mm Max. dry suction lift: 6 metres Max. wet suction lift: 8 metres MATERIAL OF CONSTRUCTION Pump Casing: Aluminium, AISI 316 Stainless Steel DIAPHRAGMS: Santoprene NBR (Nitrile / Buna-N) TPE (Hytrel) PTFE (Teflon) FKM (Viton)
2" Non Metallic Diaphragm Pumps

Industrial Supplies Center is the technical distributor, stockiest and supplier of Diaphragm pumps in Oman SPECIFICATION • Pump size: 2" • Fluid ports connection: 2" X 2" ANSI&DIN Flanged • Air inlet size: 3/4" NPSM (F) • Conformity: CE, UKCA, EAC, ATEX (ATEX applicable for conductive versions only) • Max. flow rate: 650 litres/min • Fluid displacement per cycle: 4.5 litres • Pressure ratio: 1:1 • Operating pressure range: 1.5 - 7 bar (20 - 100 psi) • Max. size of suspended solids: 6.4 mm • Max. dry suction lift: 5 metres • Max. wet suction lift: 8 metres MATERIAL OF CONSTRUCTION Pump Casing: • Polypropylene • Conductive Polypropylene • PVDF (Kynar) • Conductive PVDF (Kynar) DIAPHRAGMS: • Santoprene • NBR (Nitrile / Buna-N) • TPE (Hytrel) • PTFE (Teflon) • FKM (Viton)
2" Metallic Diaphragm Pumps

SPECIFICATION • Pump size: 2" • Fluid ports connection: 2" X 2" BSP / NPT / ANSI&DIN Flanged • Air inlet size: 3/4" NPSM (F) • Conformity: CE, UKCA, EAC, ATEX • Max. flow rate: 650 liters/min • Fluid displacement per cycle: 4.5 liters • Pressure ratio: 1:1 • Operating pressure range: 1.5 - 8 bar (20 - 120 psi) • Max. size of suspended solids: 6.4 mm • Max. dry suction lift: 5 meters • Max. wet suction lift: 8 meters MATERIAL OF CONSTRUCTION Pump Casing: • Aluminium, • Ductile Iron, • AISI 316 Stainless Steel DIAPHRAGMS: • Santoprene, • NBR (Nitrile / Buna-N), • TPE (Hytrel), • PTFE (Teflon), • FKM (Viton),
1" Non Metallic Diaphragm Pumps

SPECIFICATIONS • Pump size: 1" • Fluid ports connection: 1" X 1" BSP(F) / NPT (F) / ANSI&DIN Flanged • Air inlet size: 1/2" NPSM (F) • Conformity: CE, UKCA, EAC, ATEX (only for conductive versions) • Max. flow rate: 200 liters/min • Fluid displacement per cycle: 0.8 liters • Pressure ratio: 1:1 • Operating pressure range: 1.5 - 7 bar (20 - 100 psi) • Max. size of suspended solids: 6.4 mm • Max. dry suction lift: 5 meters • Max. wet suction lift: 8 meters MATERIAL OF CONSTRUCTION Pump Casing: • Polypropylene • Conductive Polypropylene • PVDF • Conductive PVDF DIAPHRAGMS: • Santoprene • NBR (Nitrile / Buna-N) • TPE (Hytrel) • PTFE (Teflon) • FKM (Viton)
1" Metallic Diaphragm Pumps

SPECIFICATION • Pump size: 1" • Fluid ports connection: 1" X 1" BSP / NPT • Air inlet size: 1/2" NPSM (F) • Conformity: CE, UKCA, EAC, ATEX • Max. flow rate: 200 liters/min • Fluid displacement per cycle: 0.85 liters • Pressure ratio: 1:1 • Operating pressure range: 1.5 - 8 bar (20 - 120 psi) • Max. size of suspended solids: 6.4 mm • Max. dry suction lift: 5 meters • Max. wet suction lift: 8 meters MATERIAL OF CONSTRUCTION Pump Casing: • Aluminium • AISI 316 Stainless Steel DIAPHRAGMS: • Santoprene • NBR (Nitrile / Buna-N) • TPE (Hytrel) • PTFE (Teflon) • FKM (Viton)
1/2" Non Metallic Diaphragm Pumps

SPECIFICATION • Pump size: 1/2" • Fluid ports connection: 1/2" X 1/2" BSP / NPT Threaded • Air inlet size: 1/4" NPSM (F) • Conformity: CE, UKCA, EAC, ATEX (ATEX applicable for conductive versions only) • Max. flow rate: 51 litres/min • Fluid displacement per cycle: 0.15 litres • Pressure ratio: 1:1 • Operating pressure range: 1.5 - 7 bar (20 - 100 psi) • Max. size of suspended solids: 2.5 mm • Max. dry suction lift: 5 metres • Max. wet suction lift: 8 metres MATERIAL OF CONSTRUCTION Pump Casing: • Polypropylene • Conductive Polypropylene • Conductive POM (Acetal) • PVDF (Kynar) • Conductive PVDF (Kynar) DIAPHRAGMS: • Santoprene • NBR (Nitrile / Buna-N) • TPE (Hytrel) • PTFE (Teflon) • FKM (Viton)
1/2" Metallic Diaphragm Pumps

SPECIFICATION • Pump size: 1/2" • Fluid ports connection: 1/2" X 1/2" BSP / NPT • Air inlet size: 1/4" NPSM (F) • Conformity: CE, UKCA, EAC, ATEX • Max. flow rate: 54 liters/min • Fluid displacement per cycle: 0.15 liters • Pressure ratio: 1:1 • Operating pressure range: 1.5 - 8 bar (20 - 120 psi) • Max. size of suspended solids: 2.5 mm • Max. dry suction lift: 5 meters • Max. wet suction lift: 8 meters MATERIAL OF CONSTRUCTION Pump Casing: • Aluminium • AISI 316 Stainless Steel DIAPHRAGM: • Santoprene • NBR (Nitrile / Buna-N) • TPE (Hytrel) • PTFE (Teflon) • FKM (Viton)
3/8" Non Metallic Diaphragm Pumps

SPECIFICATION • Pump size: 3/8" • Fluid ports connection: 3/8" X 3/8" BSP / NPT Threaded • Air inlet size: 1/4" NPSM (F) • Conformity: CE, UKCA, EAC, ATEX (ATEX applicable for conductive versions only) • Max. flow rate: 31 liters/min • Fluid displacement per cycle: 0.08 liters • Pressure ratio: 1:1 • Operating pressure range: 1.5 - 7 bar (20 - 100 psi) • Max. size of suspended solids: 1.6 mm • Max. dry suction lift: 3 meters • Max. wet suction lift: 7 meters MATERIAL OF CONSTRUCTION Pump Casing: • Polypropylene • Conductive Polypropylene • Conductive POM (Acetal) DIAPHRAGMS: • Santoprene • NBR (Nitrile / Buna-N) • TPE (Hytrel) • PTFE (Teflon) • FKM (Viton)
1/4" Non Metallic Diaphragm Pumps

SPECIFICATION • Pump size: 1/4" • Fluid ports connection: 1/4" X 1/4" BSP / NPT Threaded • Air inlet size: 3/8" NPSM (F) • Conformity: CE, UKCA, EAC, ATEX (Only for Conductive Versions) • Max. flow rate: 20 liters/min • Fluid displacement per cycle: 0.06 liters • Pressure ratio: 1:1 • Operating pressure range: 1.5 - 7 bar (22 - 100 psi) • Max. size of suspended solids: 2 mm • Max. dry suction lift: 2 meters • Max. wet suction lift: 7 meters MATERIAL OF CONSTRUCTION Pump Casing: • Polypropylene • Conductive Polypropylene • Conductive POM (Acetal) • PVDF (Kynar) • Conductive PVDF (Kynar) DIAPHRAGMS: • Single-Piece Santoprene • Single Piece TPE (Hytrel) • Single Piece PTFE (Teflon)
